StarLED Controller 65W

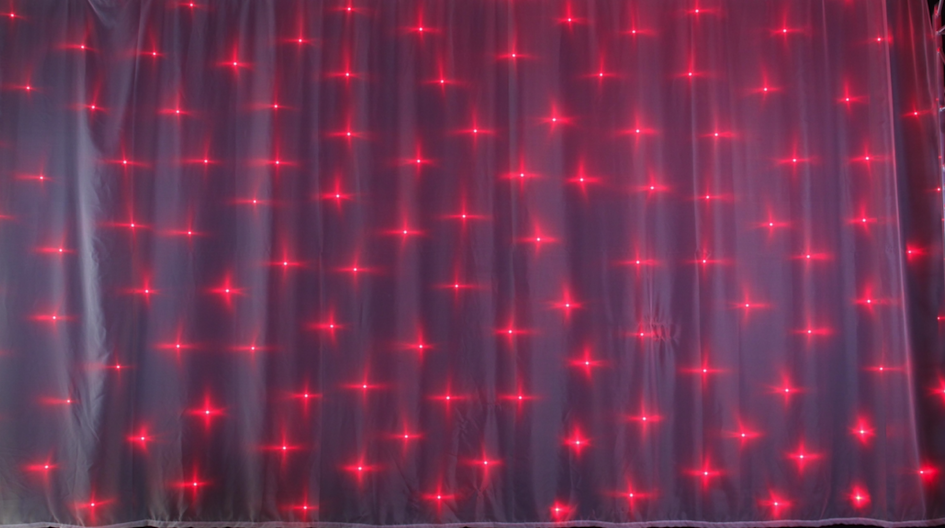

This StarLED controller is equipped with one 65W switch power supply and can control two led star curtains with total 300 led on both curtains.



It has 17 preset programs, 7 static color and 10 dynamic one. Users can set up led starcloth manually via LCD control panel. Control mode includes DMX 512, Master/Slave mode, Sound activation mode and Auto Run mode.

Related Products
Related Products
Related Products
Related Products
Related Products

  • - Highly compact sturdy controller box with built-in Meanwell power supply;





    - 2.0 TFT LCD display for easy setup;





    - RGB and white led firmware switchable for different led starcloth led color;



    - Preset programs for RGB or white color led;



    - Linear dimming and strobe;





    - Controller box fixed at one cornor inside led curtain;





    - Suitable for 6x3m, 6x4m or any other led starcloth size less than 24 sqare meters;

  • Electrical





    Input voltage



    85~132VAC, 176~264VAC, 47~63Hz

    Power supply



    65W 7.5V

    Power consumption



    42W max.

    Power fuse



    2A

    Data fuse



    10A max.

    Effects









    0-100% RGB color changing and linear dimming





    Fast strobe (speed adjustable), sound-activated





    7 static color and10 dynamic programmers, built-in color macros





    Auto run programs with speed adjustable





    8 groups of LEDs controllable separately for various effects

    Control





    Control mode



    DMX512; Auto run mode; Master/Slave mode; Sound activation mode

    Control panel



    LCD display, control panel lockable

    DMX channel



    Basic mode: 7 channels; Advanced mode: 28 channels;

    DMX connector



    3-pin or 5-pin XLR input/output port

    Physical & Construction

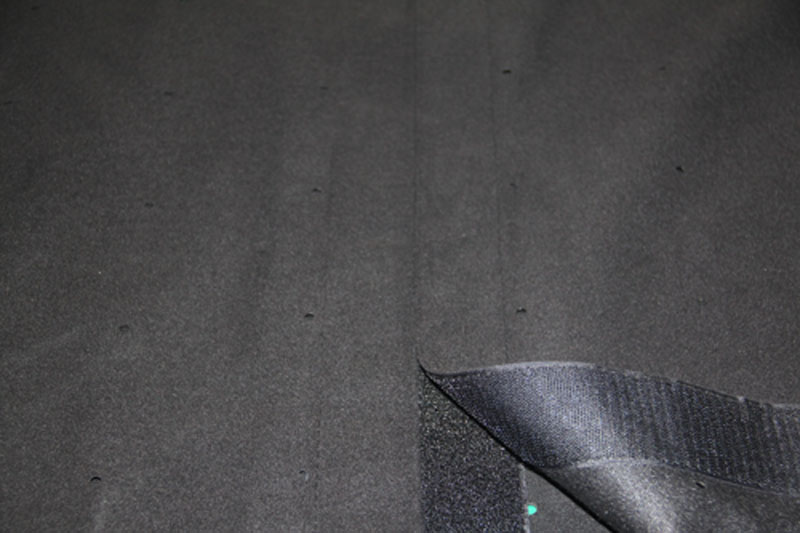

    Curtain material



    Fire retardant heavy duty cloth

    Curtain size



    6,000 x 4,000 mm

    Controller material



    Aluminum

    Controller box size



    298L x 179W x 43H mm

    Net weight



    2.0 kg

    Controller color



    Black
