NEXT Q4 IP Plus



NEXT Q4 IP PLUS is a battery powered uplighter with wireless DMX transceiver. It has 4 x 12W RGBW (RGBA optional) 4-in-1 color super bright led.



NEXT Q4 IP PLUS has a built-in rechargeable lithium-ion battery fully protected against overcharging to maximize battery life span.



This fixture uses a very stable wireless DMX transceiver. The fixture can also be controlled with infrared remote controller. The IR controller can help users to achieve all working functions.



NEXT Q4 IP PLUS is rated IP65 and can be temporarily used outdoor.



Thanks to its modular design, it is easy and convenient to maintain and repair in case of need.



This highly compact luminaire has very small dimensions that can be used not only as an uplighter but also as truss warmer. Its tilt can manually move 25 degrees when needed. It is absolutely an ideal tool for mobile DJ/Bands, wedding, exhibitions, ball room and hotel banquet halls etc.

  • - Powered by rechargeable lithium-ion battery;



    - Battery protection against overcharging, hence to ensure battery lifespan;



    - 100% true wireless DMX transceiver;



    - OLED display with touch buttons for easy addressing and setup;



    - Powercon True1 input with IP65 XLR connector for temporary outdoor use;



    - Infrared remote control; - Modular design for easy and fast maintenance;



    - Tilt adjustable 25° to light up trees and facade.



  • Electrical







    Power input

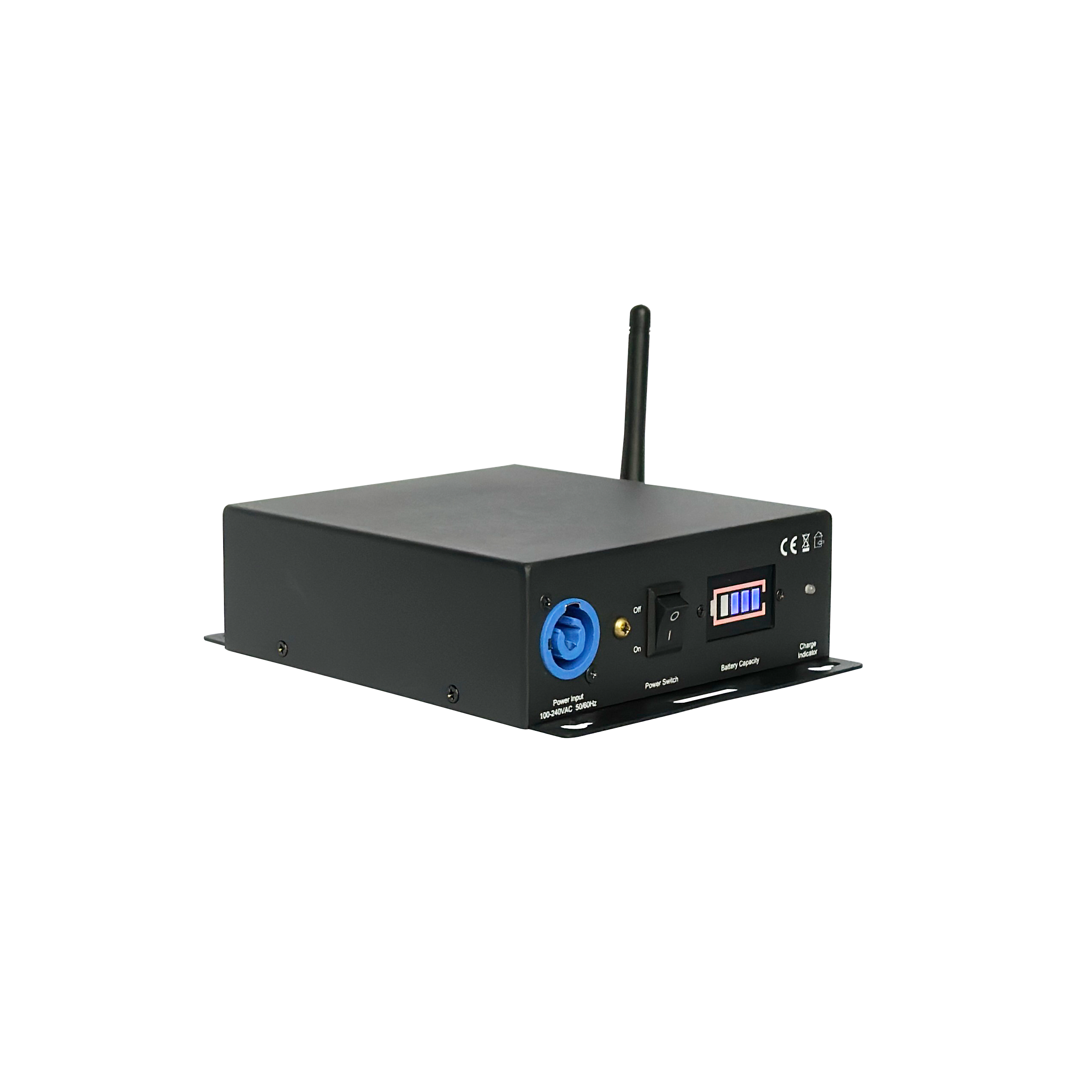

    100-240VAC 50/60Hz (Charge case)



    Power consumption





    50W max



    Power connectors







    Charge base and Powercon True1 Input





    Battery













    Battery type







    Rechargeable lithium-ion battery





    Charge time





    Around 5 hours



    Battery life





    Around 5 hours  to run full color









    Around 8 hours to run color mixing









    Around 12 hours to run single color



    Light sources













    Led





    4x12W, RGBW full color (RGBA optional)

    Beam angle





    15°





    Field angle







    29°





    Led average life span







    Over 50,000 hours





    Control













    Control mode





    Master/Slave, Auto Run, Wireless DMX; Infrared remote control



    DMX channel







    4/6/10 channel selectable





    Control panel







    OLED display with touch buttons





    Physical & Construction













    Housing







    Rigid metal housing





    Housing color







    Black





    Fixture dimensions







    138 x 144 x 204mm





    Net weight







    3.5 kg





    Working temperature







    -10℃ - 40℃





    Charge temperature







    0℃- 35℃





    IP rating







    Top: IP65, base: IP54





    Cooling







    Natural cooling, silent operation
