NEXT H6 IP




NEXT H6 IP is a powerful battery operated wirelss uplighter. It has 6 x 12W RGBWAUV hex color led, and can create impressive color changing effects. With 25 degree lens, NEXT H6 can wash up bigger area with even and bright output.

NEXT H6 IP uses a very stable wireless DMX transceiver. The fixture can also be controlled with infrared remote controller. The IR controller can help users to achieve all working functions.

NEXT H6 IP is rated IP65 on the top, and IP20 with its base, and can be temporarily used outdoor.

This highly compact luminaire has very small dimensions that can be used not only as an uplighter but also as truss warmer. Its tilt can manually move 25 degrees when needed. It is absolutely an ideal tool for mobile DJ/Bands, wedding, exhibitions, ball room and hotel banquet halls etc.
  • -Powered by rechargeable lithium-ion battery;



    - Battery protection against overcharging to ensure battery lifespan;



    -Drop-n-charge in charge case;



    -100% true wireless DMX transceiver;



    - OLED display with touch buttons for easy addressing and setup;



    -Infrared remote control Modular design for easy and fast maintenance;



    -Tilt adjustable 25°

  •

    Electrical



    Power input

      100-240VAC 50/60Hz(Charge case)

    Power consumption

      72W max.

    Power connector

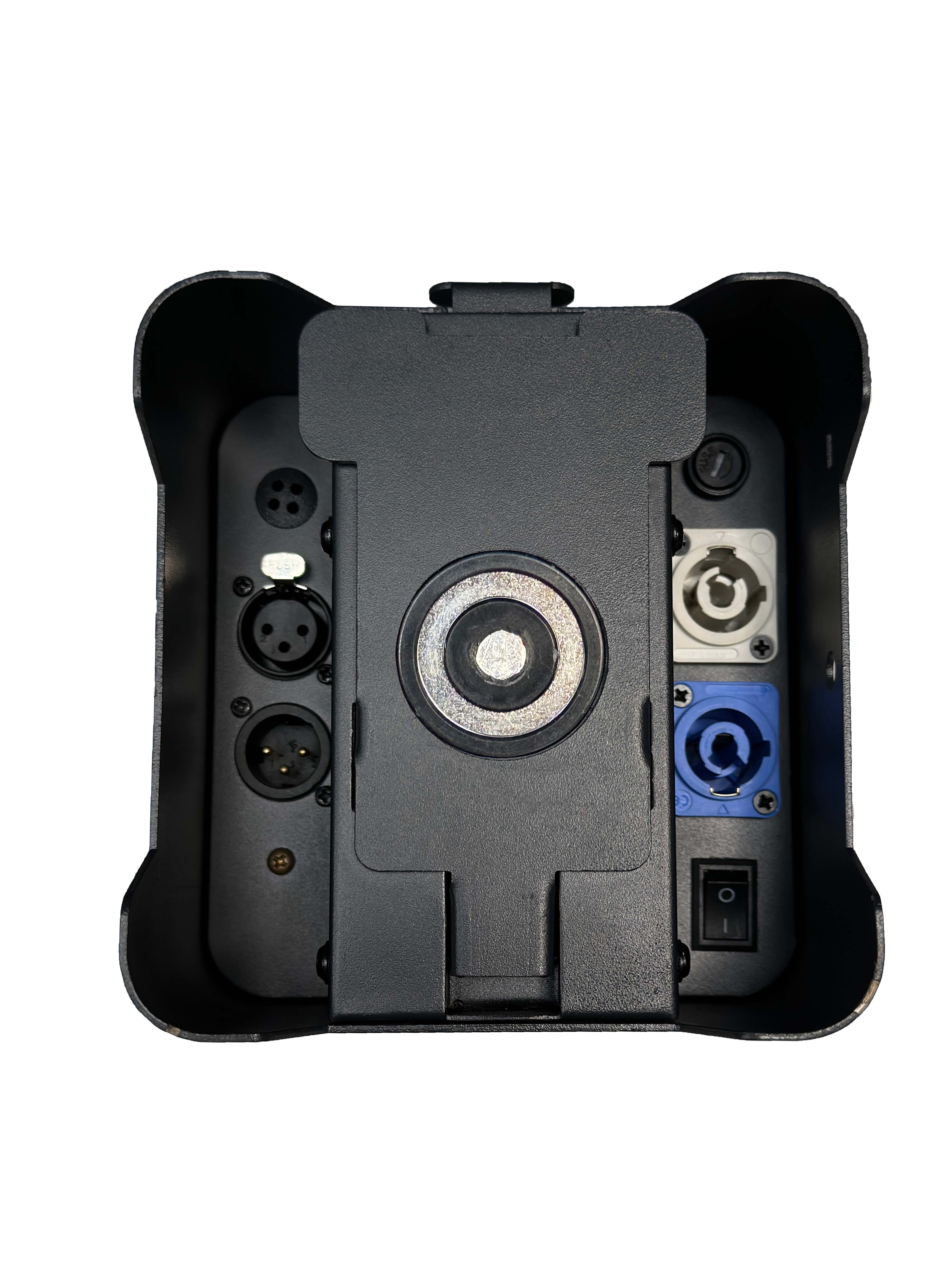

      Charge base,and Powercon I/O connector

    Battery



    Battery type

      Rechargeable lithium-ion battery

    Charge time

      Around 5 hours

    Battery life

      Around 5 hours to run full color



      Around 8 hours to run color mixing



      Around 12 hours to run single color

    Light sources



    Led

      6x12W, RGBWA+UV hex color

    Beam angle

      25°

    Field angle

      49°

    Led average life span

      Over 50,000 hours

    Control



    Control mode

      DMX512,Master/Slave,AutoRun,

      Wireless DMX;Infrared remote control

    DMX channel

      6/8/12 channels

    Control panel

      OLED display with touch buttons

    Physical & Construction



    Housing

      Rigid metal housing

    Housing color

      Black

    Fixture dimensions

      138 x 144 x 204mm

    Net weight

      3.3 kg

    Working temperature

      -10℃ - 40℃

    IP rating

      Top: IP65; Base: IP20

    Cooling

      Natural cooling, silent operation
