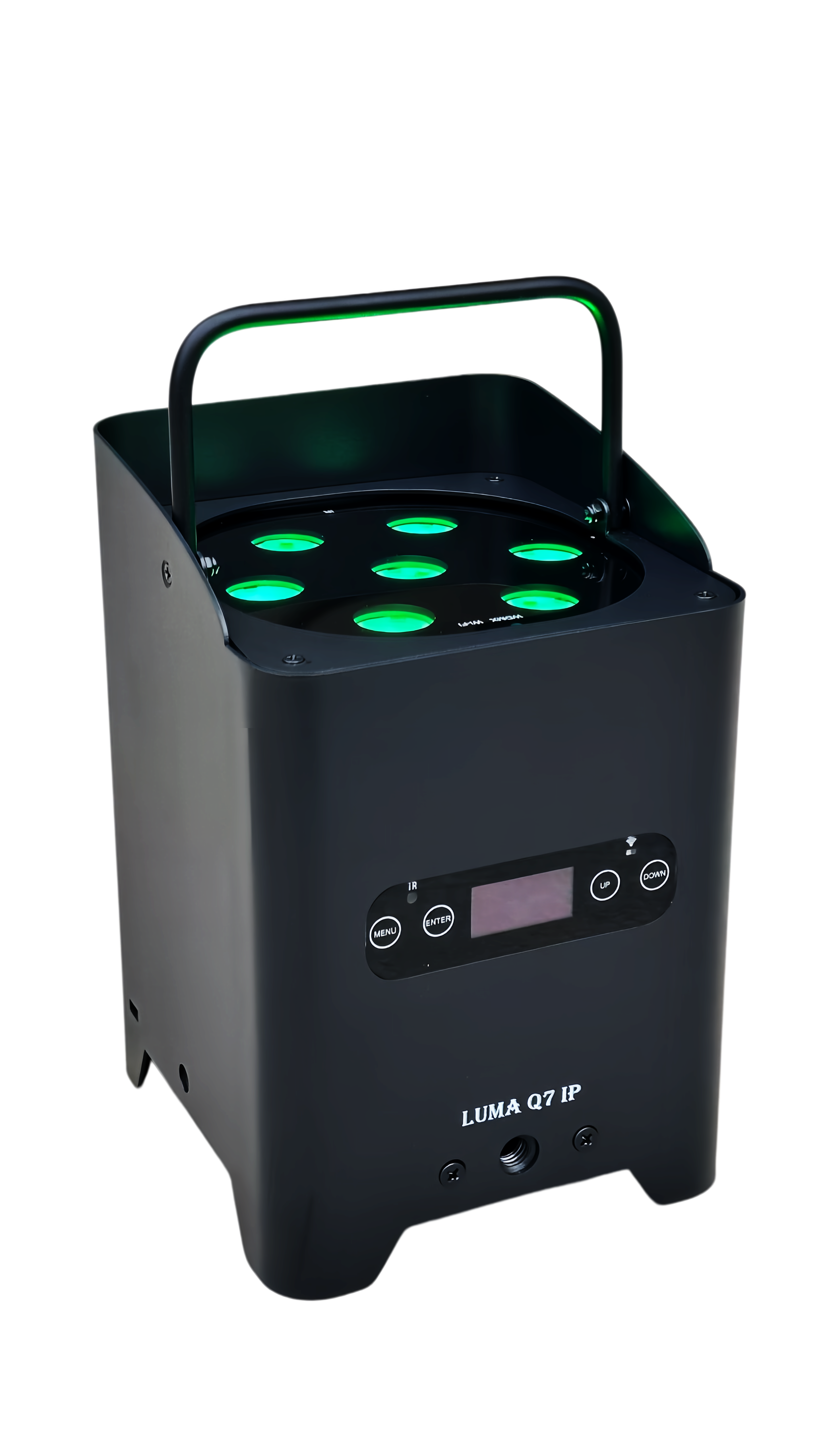

Luma Q7/H7 App


Related Products
  • - Powered by rechargeable lithium-ion battery;



    - Battery runtime selectable from 2 hours up to 18 hours;



    - Wireless DMX transceiver fully compatible to W-DMX;



    - USB Type-C port available for updating firmware;



    - OLED display with touch buttons for easy addressing and setup;



    - Controllable via Vision App with smartphone or PC;



    - Infrared remote control;



    - Modular design for easy and fast maintenance;



    - Firmware can be updated via USB-Type-C port or App control;



    - Tilt 25° adjustable;



    - IP65 for temporary outdoor use.

  •

    Electrical



    Power input

      100-240VAC 50/60Hz

    Power consumption

      75W max

    Power connector

      Charge base and Powercon True1 Input

    Battery



    Battery type

      Rechargeable lithium-ion battery

    Recharge time

      Around 5 hours

    Battery life

      Around 5 hours to run full color



      Around 8 hours to run color mixing



      Around 12 hours to run single color

    Light sources



    Led

      7 x 10W RGBL / RGBWLC

    Beam angle

      10°/15°

    Field angle

      22°/29°

    Led average life span

     50,000 hours

    Control



    Control mode

      DMX512, Master/Slave, Auto Run, Wireless DMX;

      Infrared remote control Vision App (optional)

    DMX channel

      4/6/10; 6/8/11 channels

    Control panel

      OLED with touch buttons

    Physical & Construction



    Housing

      Rigid housing

    Housing color

      Black

    Fixture dimensions

      138 x 144 x 204mm

    Net weight

      3.5 kg

    Working temperature

      -10℃ - 40℃

    IP rating

      Top: IP65; Base: IP54

    Cooling

      Natural cooling, silent operation
