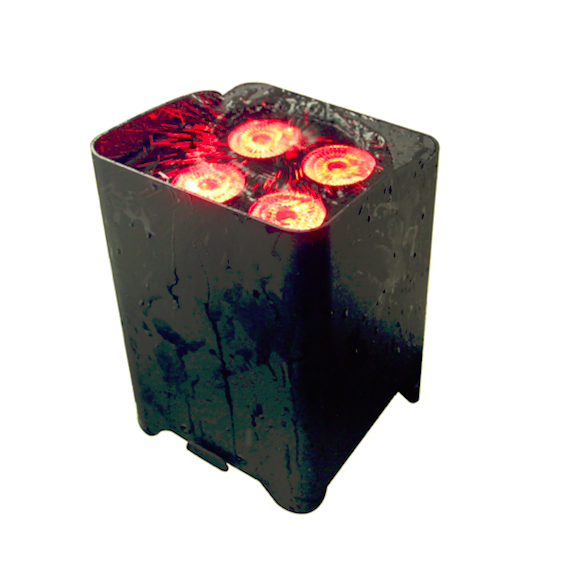

Legend Q4 IP





 Legend Q4 IP is battery powered and wireless DMX led uplighters equipped with 4 pieces 10W quad color led RGBA(RGBW optional). Legend Q4 IP has a charging base and can be charged automatically when put inside its charging case.



Legend Q4 IP is equipped with wireless DMX transceiver (WDMX Sweden optional) that is 100% compatible with WDMX from Sweden.This ensures maximum stability of wireless DMX signal. Fixture can be wirelessly controlled as far as 400m within visible distance.







Related Products
Related Products
Related Products
Related Products
Related Products

  • -Rechargeable lithium-ion battery running from 5 hours (FC) to 12 hours (single color);





    -Battery protection against overcharging,hence to ensure battery lifespan;




    -100% true wireless DMX up to 400m visible control distance;




    -Flicker-free operation suitable for HD camera;




    -OLED display monitoring various fixture working status;




    -Infrared remote control;




    -Modular design for easy and fast maintenance;




    -Tilt adjustable 25° to light up wall, trees and facade;




    -Can be used as truss warmer inside or outside of truss.

  • Electrical



    Power input

      100-240VAC 50/60Hz

    Power consumption

      45W

    Power input/output connector

      Built-in charging base

    Battery



    Battery type

      Rechargeable lithium-ion battery

    Charge time

      About 5.0 hours

    Battery life

      5 hours FC from one charge



      8 hours at running preset programs



      12 hours at running single color

    Light sources



    Led

      4x10W, RGBA(RGBW 4-in-1 optional)

    Beam angle

      15°

    Field angle

      29°

    Led average life span

      50,000 hours

    Effects



    Dimming

      0-100% linear dimming

    strobe

      0~25 Hz

    Program

      20 preset programs

    Control



    Control mode

      DMX512,Master/Slave,AutoRun,

      Wireless DMX;Infrared remote control

    DMX channel

      4/6/11 channels

    Control panel

      OLED display with touch buttons

    Physical & Construction



    Housing

      Rigid metal housing

    Housing color

      Black(white optional)

    Fixture dimensions

      138 x 144 x 204mm

    Net weight

      3.2 kg

    Working temperature

      -10℃ - 40℃

    IP rating

      IP54

    Cooling

      Natural cooling, silent operation

    Packing



    Carton box

      4 fixtures in one carton

    Charging case

      8 fixtures in one charging case
