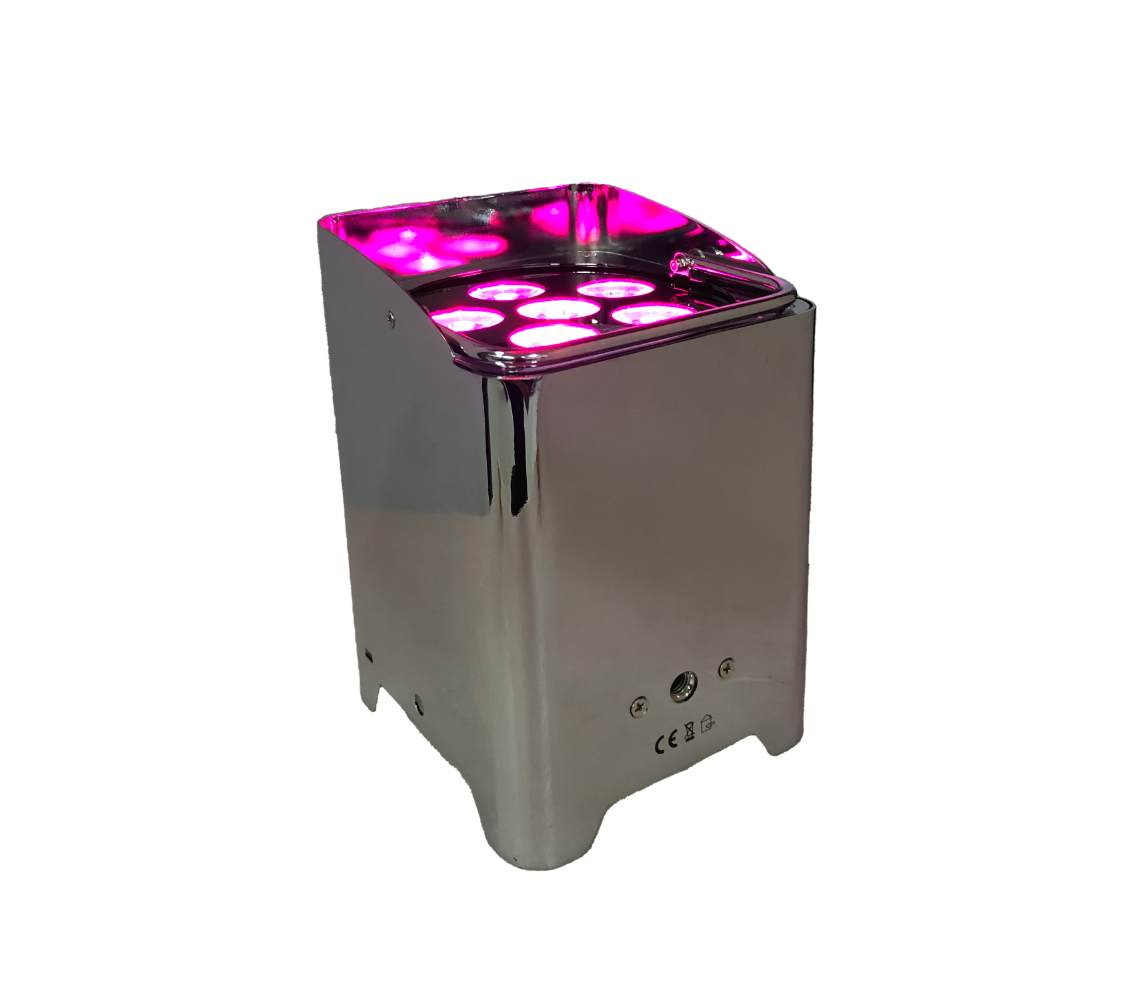

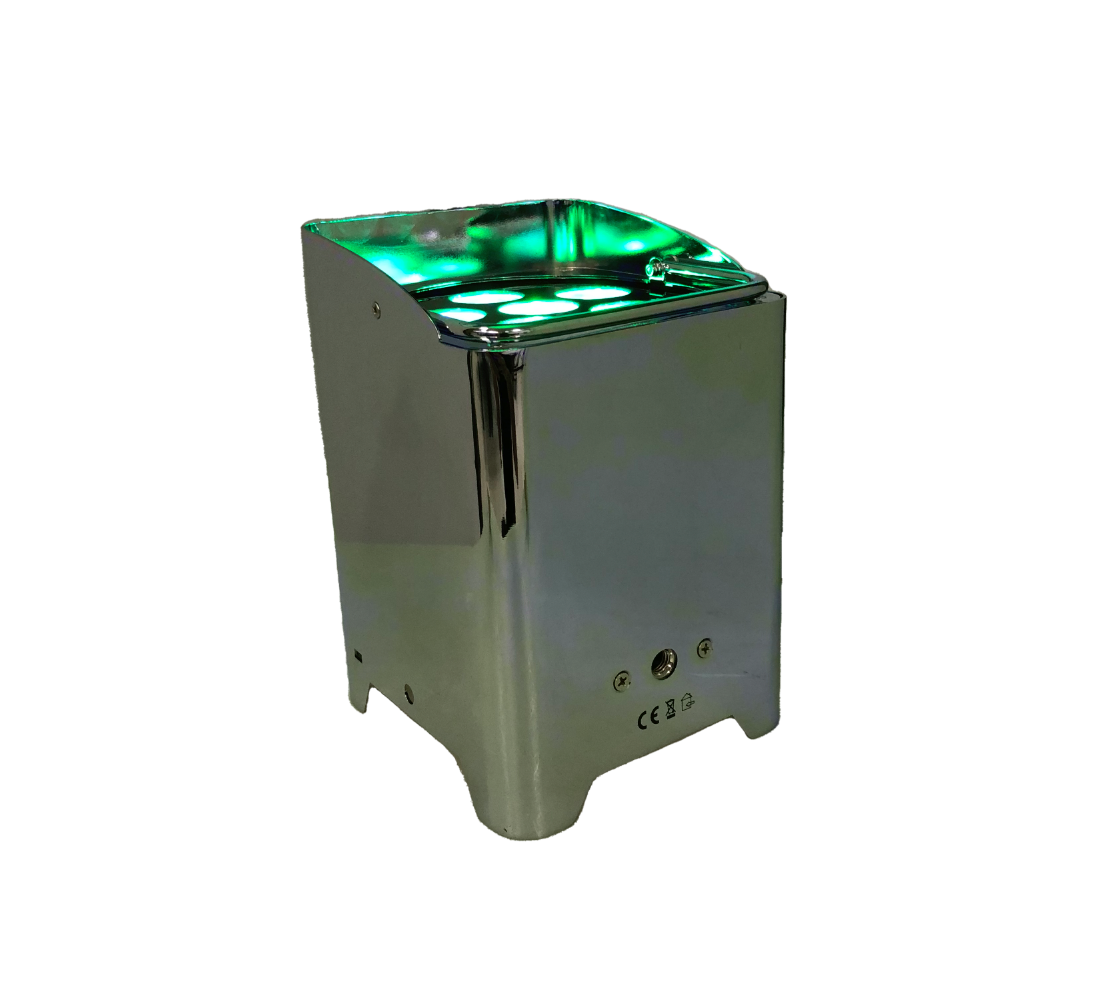

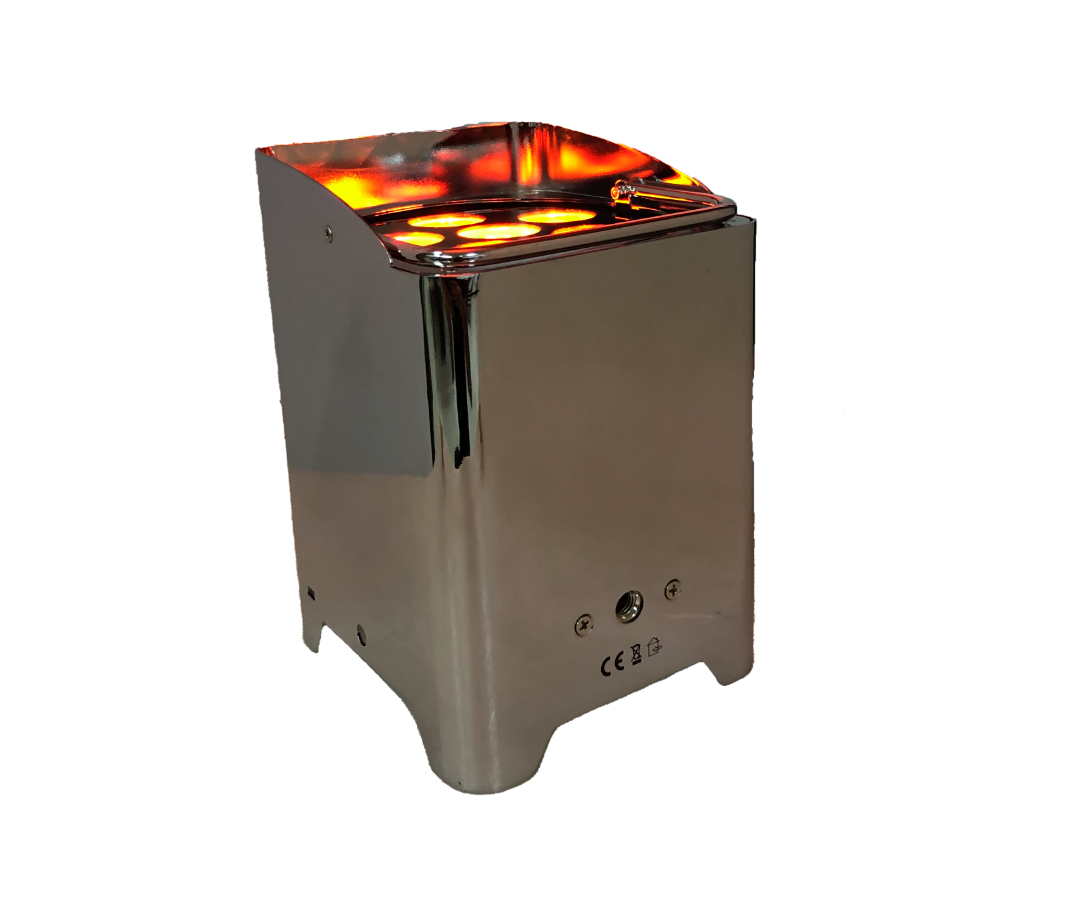

Legend H6 IP Chrome




Legend H6 IP Chrome is an upgraded version to Legend H6 IP housing. The chrome finish helps to immerge the battery light into its surroundings. The morror housing is just perfect to make your event look neat and nice.

All other parameters are exactly the same as Legeng H6 IP.
  • -Rechargeable lithium-ion battery with LG chem;



    -Battery protection against overcharging,hence to ensure battery lifespan;




    -100% true wireless DMX up to 400m visible control distance;



    -OLED display monitoring various fixture working status;




    -Chrome housing finish helps to emmerge the fixture into its surroundings;





    -Infrared remote control;




    -Modular design for easy and fast maintenance;




    -Tilt adjustable 25° to light up wall, trees and facade

  •

    Electrical



    Power input

      100-240VAC 50/60Hz(Charge case)

    Power consumption

      72W max.

    Power input/output connector

      Built-in charging base

    Battery



    Battery type

      Rechargeable lithium-ion battery

    Charge time

      About 5.0 hours

    Battery life

      5 hours FC from one charge



      8 hours at running color mixing



      12 hours at running single color

    Light sources



    Led

      6x12W hex color

    Beam angle

      25°

    Field angle

      49°

    Led average life span

      50,000 hours

    Control



    Control mode

      DMX512,Master/Slave,AutoRun,

      Wireless DMX;Infrared remote control

    DMX channel

      6/8/11 channels

    Control panel

      OLED display with touch buttons

    Physical & Construction



    Housing

      Rigid metal housing

    Housing color

      Chrome/Mirror finish

    Fixture dimensions

      138 x 144 x 204mm

    Net weight

      3.0 kg

    Working temperature

      -10℃ - 40℃

    IP rating

      Top: IP65; Base: IP20

    Cooling

      Natural cooling, silent operation

    Packing



    Carton box

      4 fixtures in one carton

    Charging case

      8 fixtures in one charging case
