AirLink IP

AirLink IP is a wireless DMX transceiver. It can provide stable wireless DMX transmission and is fully compatible with W-DMX protocol.

This transmitter box uses waterproof 3-pin XLR in and out connectors (5-pin optional) from Seetronic.

It's easy to switch function between transmitter and receiver by just pressing one button.

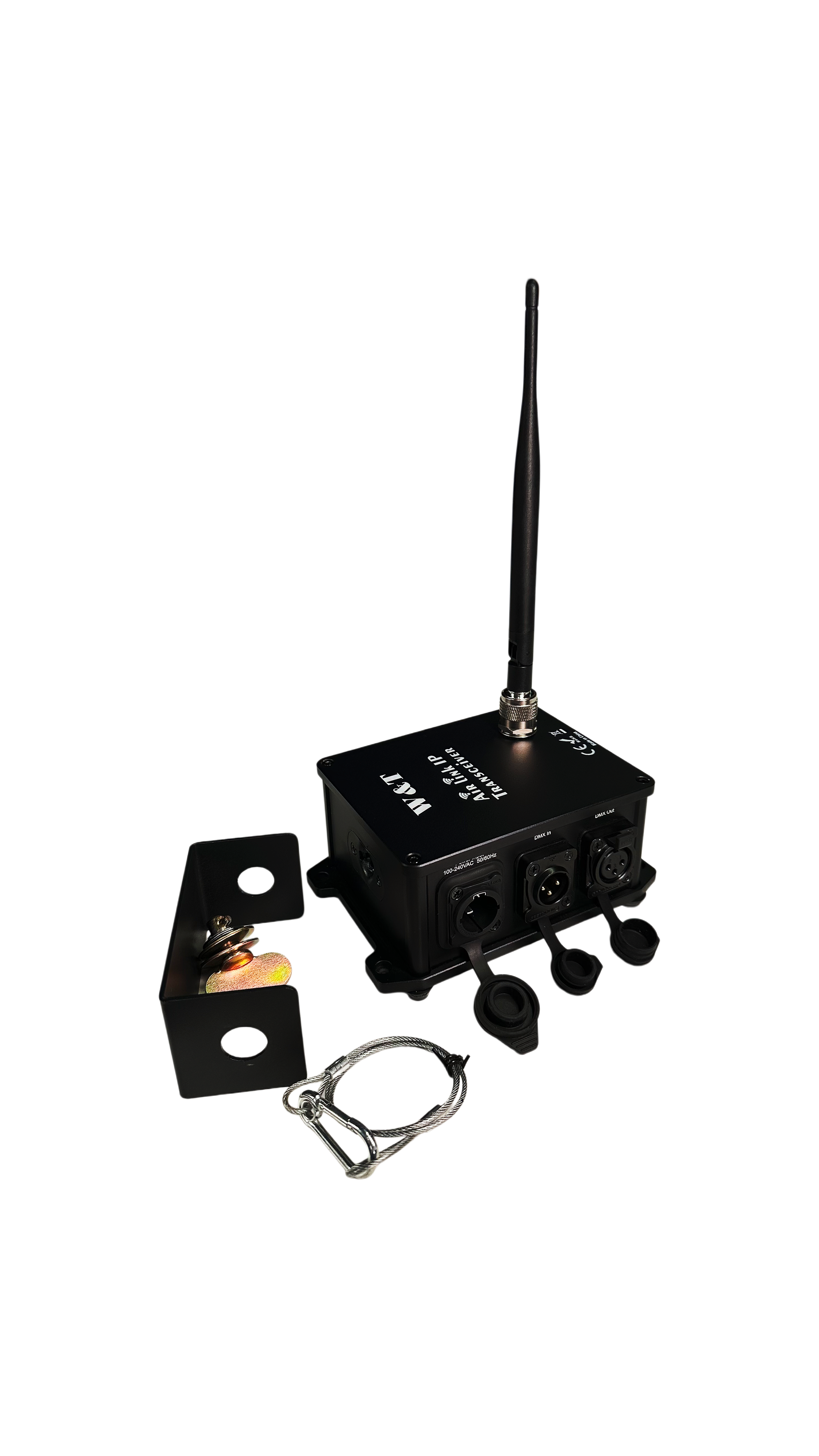

Thanks to its enhanced antenna, wireless DMX transmission range is up to 400m outdoor (with line-of-sight). AirLink IP is equipped with a removable bracket and can be installed to truss or any fixed crossbars.

Related Products

- WDMX fully compatible to W-DMX;

- Switching between transmitter and receiver;

- Wireless DMX eliminates extensive cabling between DMX controller and the DMX controlled units in lighting installations;

- Operating range up to 500m (with line-of-sight);

- 1 to 512 receivers can be controlled by each transmitter;

- DMX input and output, 3-pin XLR IP (5-pin optional);

- Mounting bracket available for truss attachment option;

- 2.4 GHz - license-free worldwide; - Suitable for temporary outdoor events.

Power input	DC input 5V 1A
Power consumption	5W max.
Frequency	2.4 GHz ISM band, 58 channels
Working coverage	About 400m (line-of-sign)
Antenna	2dBi
Latency	<5 msec
DMX channel	512 channels
DMX connector	3-pin XLR in/out
Dimensions	158mm L x 104mm W x 64mm H (without bracket and antenna) 242mm L x 104mm W x 285mm H (incl. bracket and antenna)
IP rating	IP 65
Net weight	1.5kg
