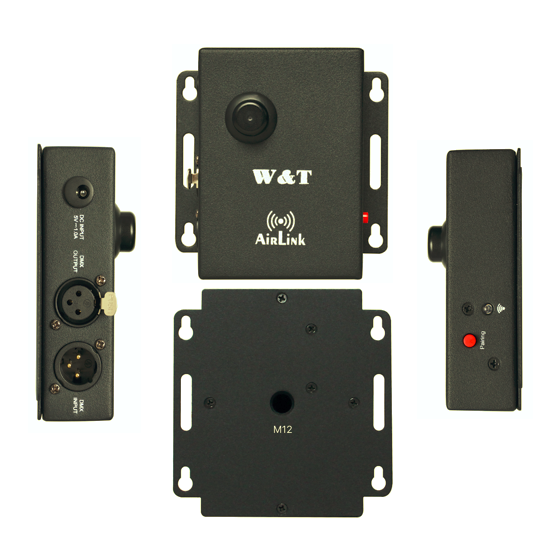

AirLink





Transceiver AirLink can work as transmitter and receiver as well. AirLink box can work to control any lighting fixtures controllable with standard DMX 512 protocol. Just press the GREEN button to switch between transmitter and receiver.

  • Switching between transmitter and receiver;

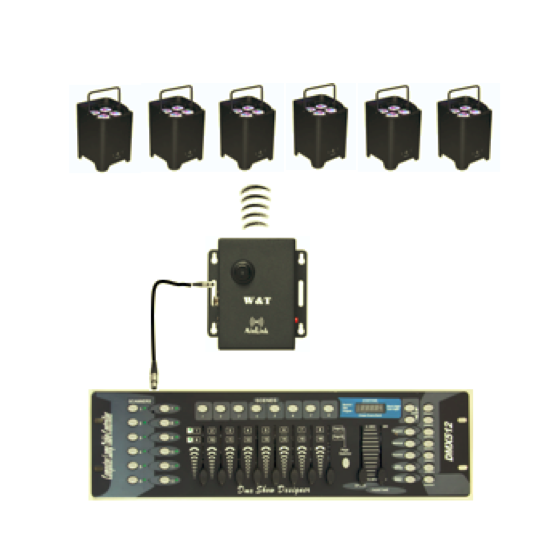

    -Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations;





    -Operating range up to 400m (with line-of-sight);





    -1 to 512 receivers can be controlled by each transmitter;





    -Plug & Play: quick and easy setup with one operating button • LED indication for operation and functions;

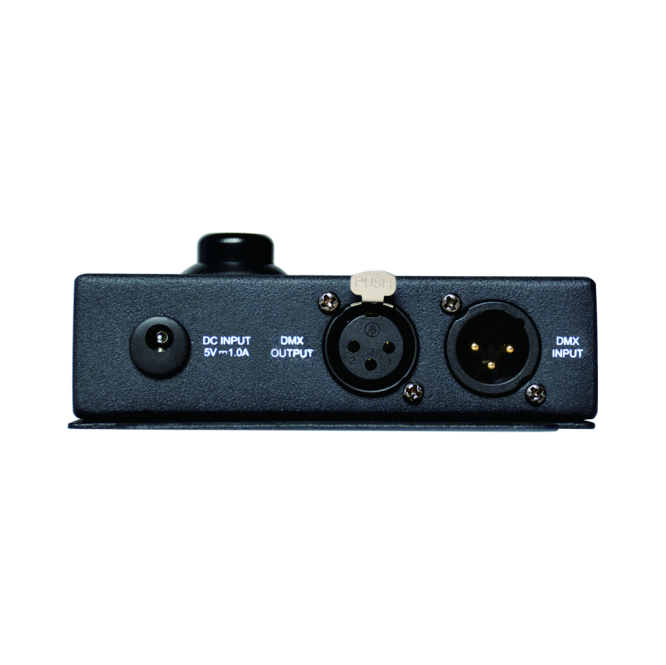

    -DMX input and output, 3-pin XLR;





    -Truss attachment option;





    -2.4 GHz - license-free worldwide;







  • Power input

          DC input 5V 1A

    Power consumption

          5W max.

    Frequency

          2.4 GHz ISM band, 58 channels

    Working coverage

          About 200m (line-of-sign)

    Antenna

          2dBi

    Latency

          <5 msec

    DMX channel

          512 channels

    DMX connector

          3-pin XLR in/out

    Dimensions

          120 x 115 x 48.5mm

                              IP rating        IP 20

    Net weight

          0.5kg
