• -Heavy duty fire retardant molton;





    -Super bright RGB tri-color led with pure cold white color mixing;





    -Total power rating 20 amps;





    - Specially designed rigid casing protecting each led;





    -128 led in 8 groups, each group individually DMX controllable;





    -Special design for quickly changing led without any tools;





    -3 StarLED controllers optional to control one or two led curtain;





    -Built-in 17 programs manually selectable;





    -Special design in connecting two or more led curtain seamlessly in minutes to create a large backdrop.

  • Electrical





    Input voltage



    85~132VAC, 176~264VAC, 47~63Hz

    Power supply



    150W 7.5V

    Power consumption



    42W max.

    Power fuse



    2A

    Data fuse



    10A max.

    Effects









    0-100% RGB dimming





    Fast strobe (speed adjustable), sound-activated





    10 pre-set programmers, built-in color macros





    Auto run programs with speed adjustable





    8 groups of LEDs controllable separately for various effects

    Control





    Control mode



    DMX512; Auto run mode; Master/Slave mode; Sound activation mode

    Control panel



    LCD display, control panel lockable

    DMX channel



    Basic mode: 7 channels; Advanced mode: 28 channels;

    DMX connector



    3-pin and 5-pin XLR input/output ports

    Physical & Construction





    Curtain material



    Fire retardant heavy duty cloth

    Curtain size



    6,000 x 4,000 mm

    Controller material



    Aluminum

    Controller box size



    298L x 179W x 43H mm

    Net weight



    2.0 kg

    Controller color



    Black
Related Products
Related Products
Related Products
Related Products
Related Products
ꁆ ꁇ

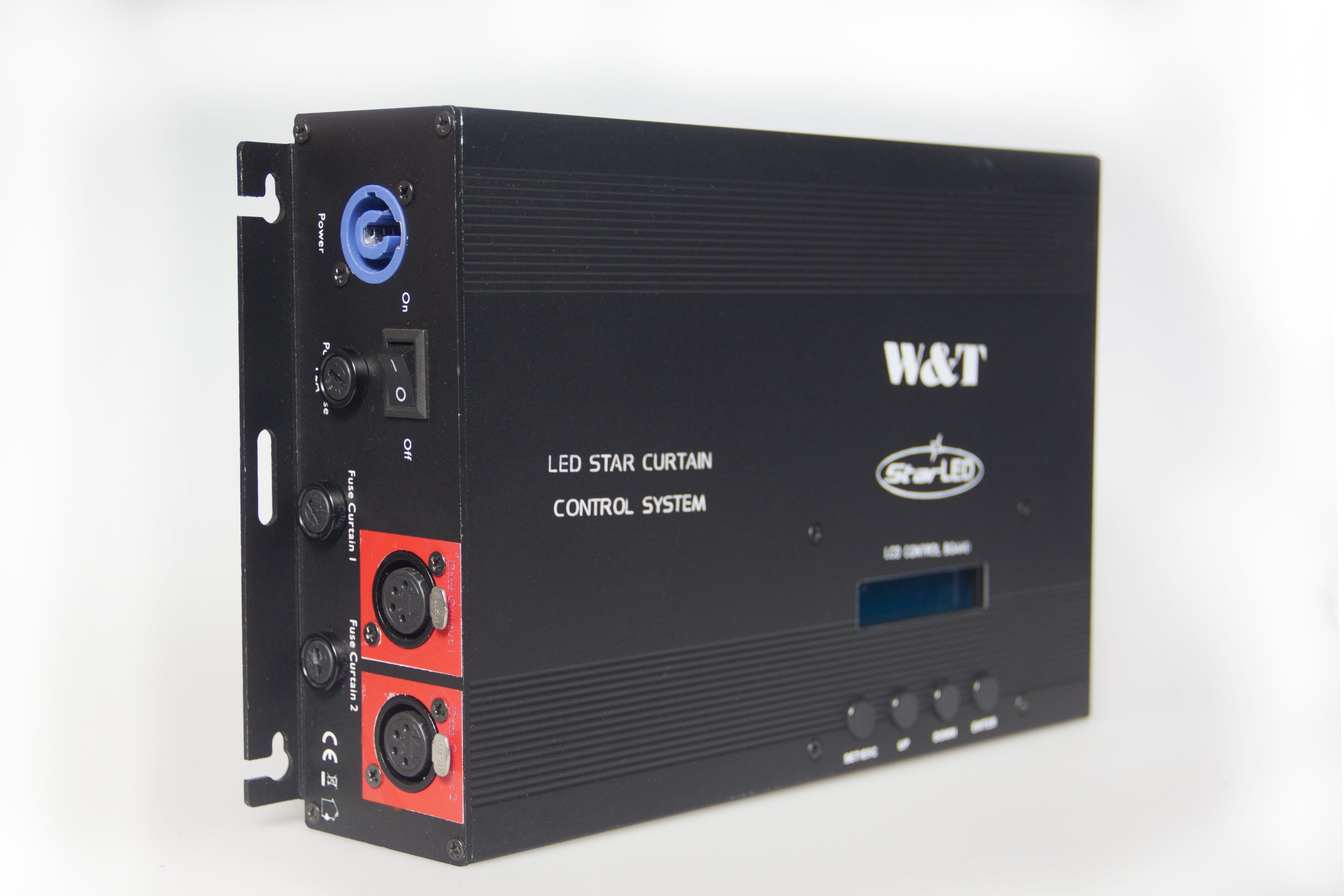

StarLED Controller 150W







This StarLED controller is equipped with one 15W switch power supply and can control two led star curtains with total 300 led on both curtains.



It has 17 preset programs, 7 static color and 10 dynamic one. Users can set up led starcloth manually via LCD control panel. Control mode includes DMX 512, Master/Slave mode, Sound activation mode and Auto Run mode.
